Manifold flange adapter T25 to BorgWarner EFR V-Band Turbo

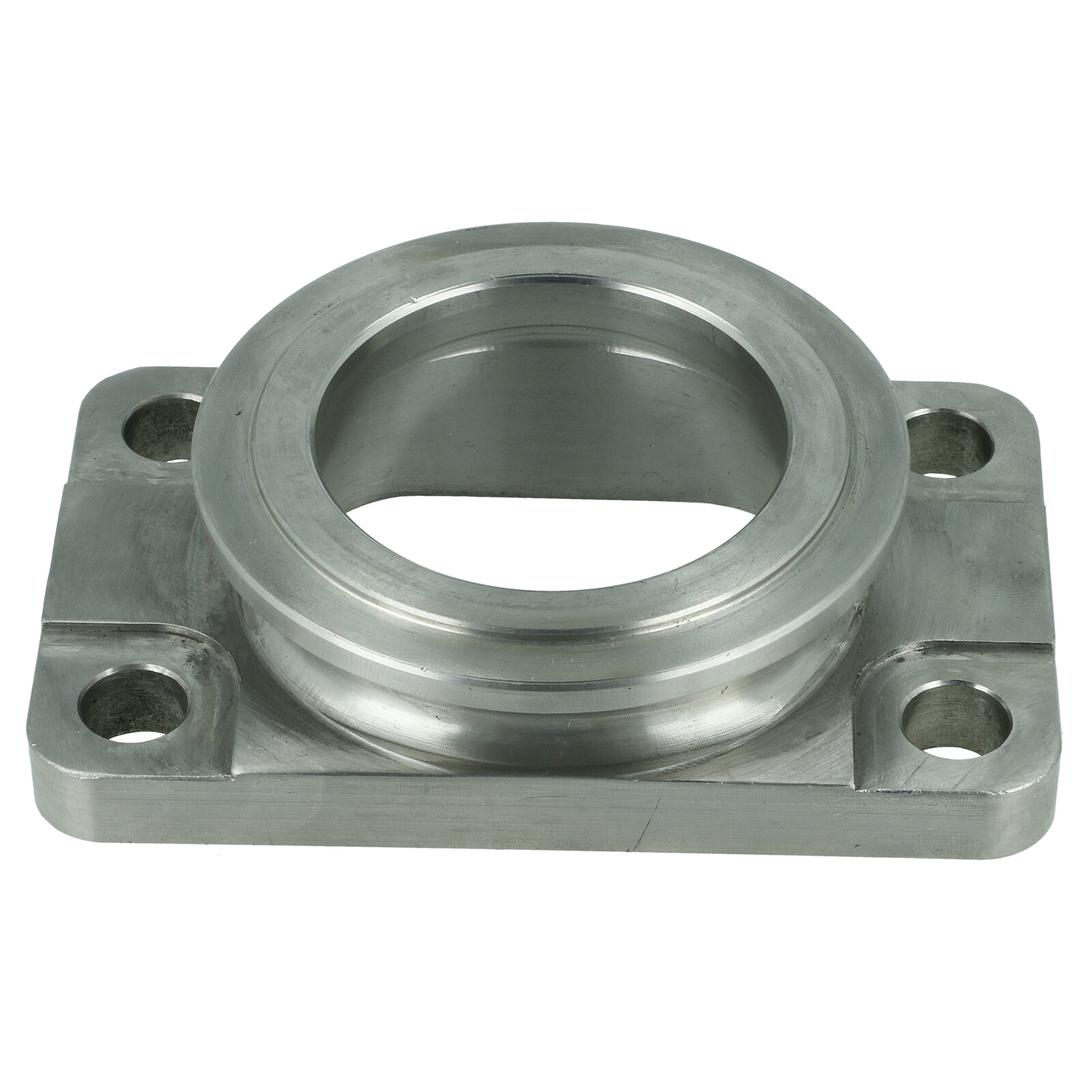

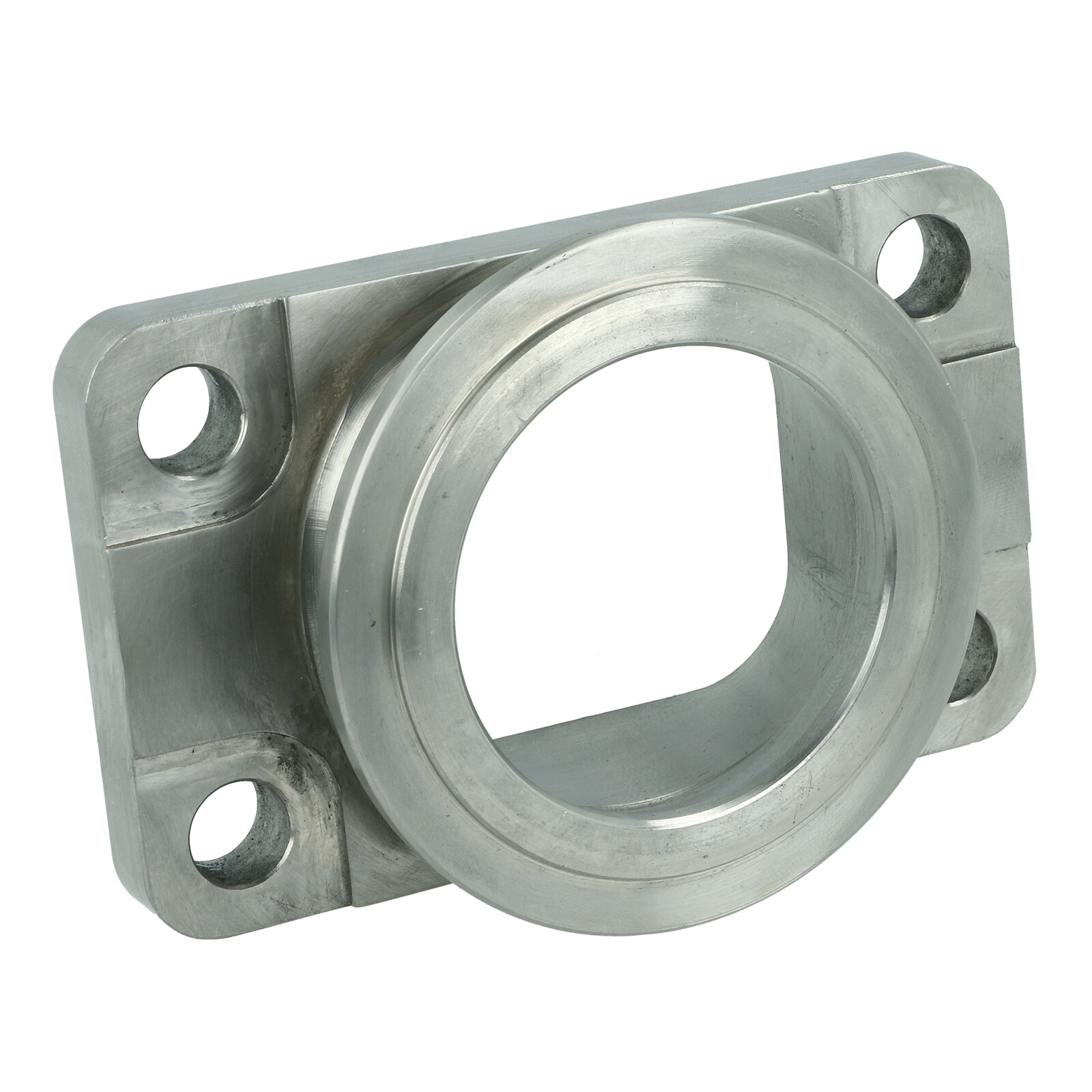

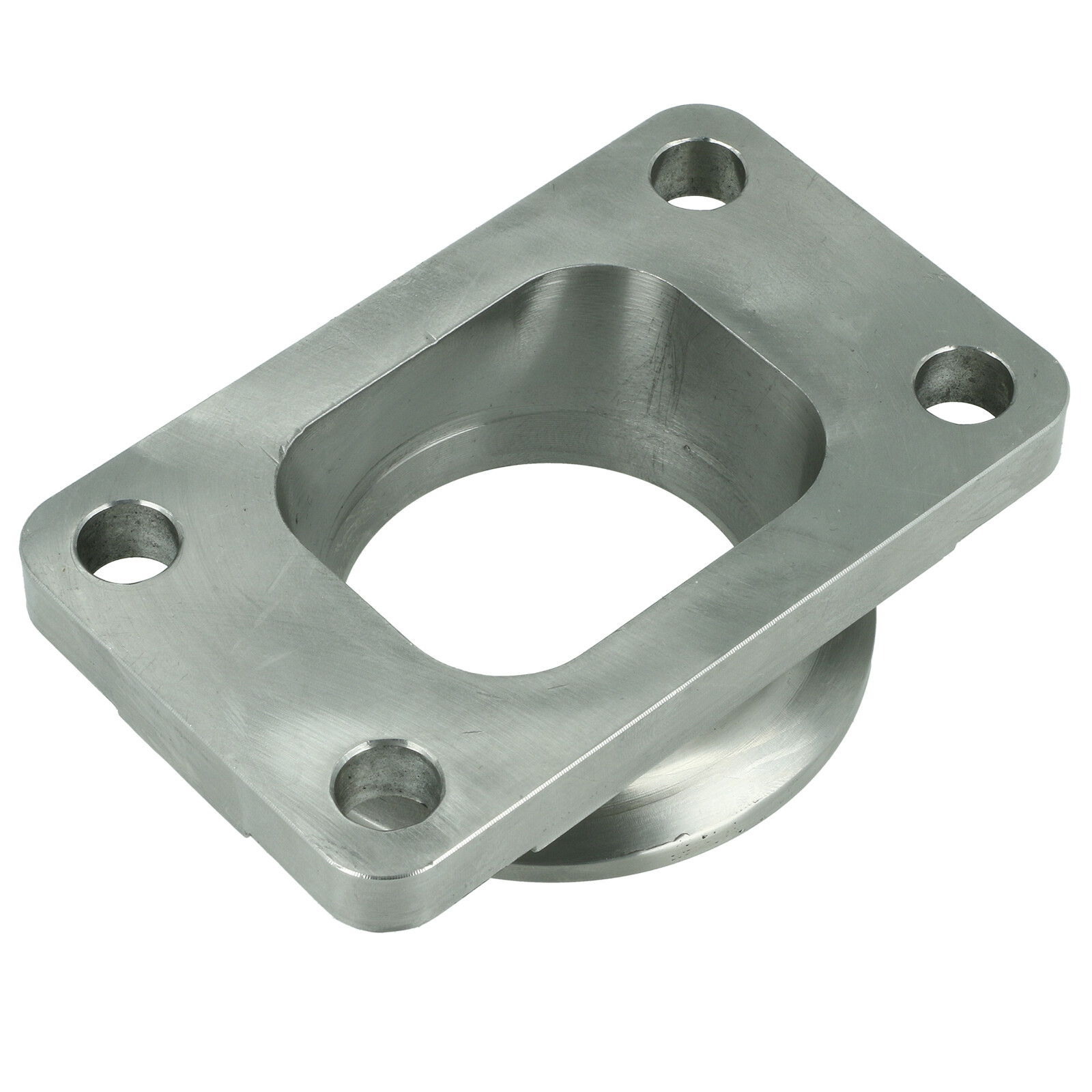

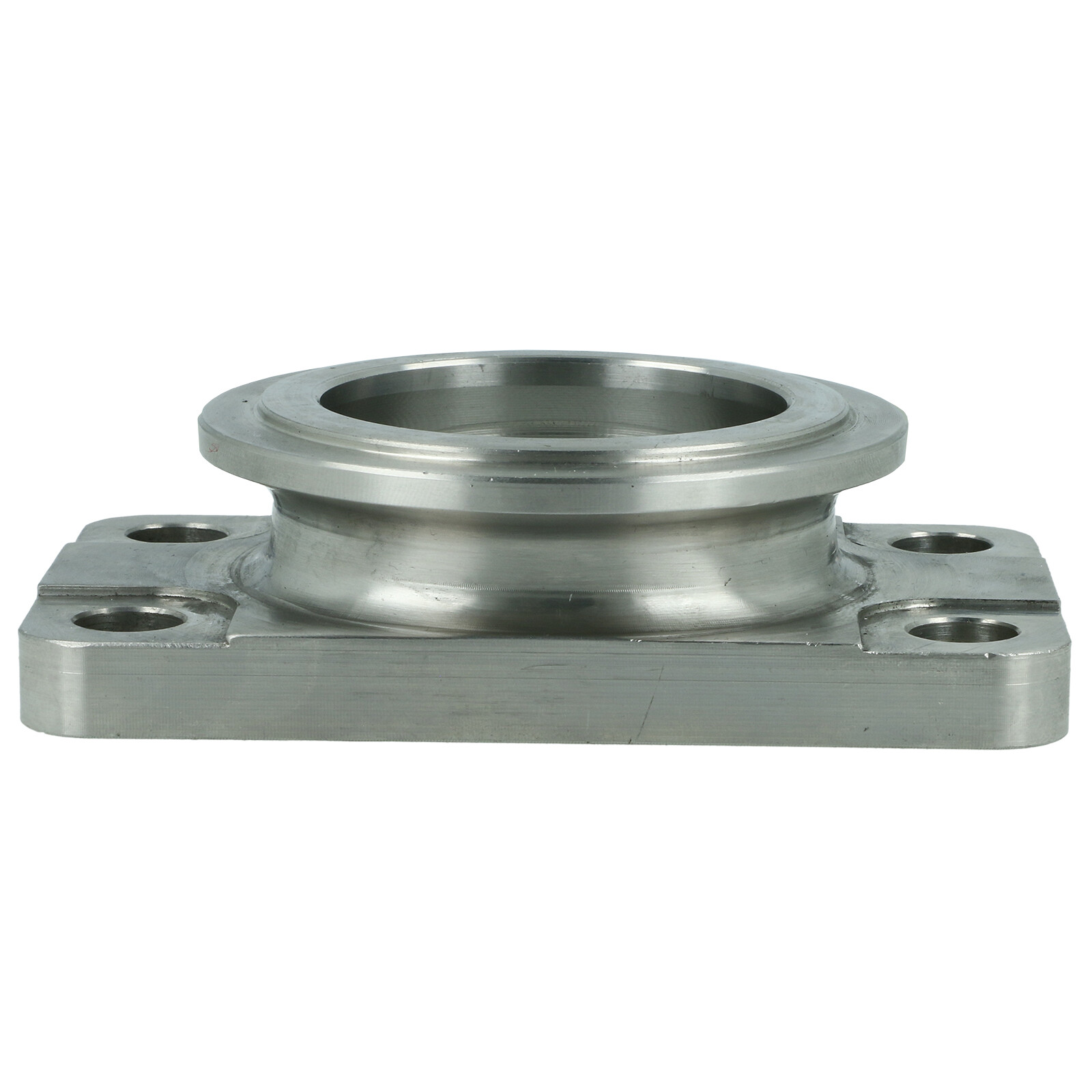

Stainless steel adapter flange for EFR VBand turbine housing to T25 manifold
High-quality stainless steel turbo flange adapter for EFR-6258 / EFR-6758 / EFR-7163 V-Band turbocharger to T25 manifold
You have an BorgWarner EFR turbine housing/turbocharger with V-Band inlet but a turbo manifold with T25 flange? Then here is the solution.
The TurboZentrum has now produced a high quality stainless steel adapter flange from T25 manifold flange to EFR V-Band turbine housing (inlet). The adapter is CNC machined of high premium stainless steel and is therefore extremely heat resistant (1200°C) and thanks to the CNC process very flow-favorable.
The flange is used to mount a turbocharger with V-band inlet flange on the exhaust housing on a turbo manifold with T25 flange. This makes it very popular with all EFR 6258, EFR 6758, EFR 7163, AGP and TurboZentrum V-Band turbine housings.
The TurboZentrum offers a wide range of turbo flanges, whether manifold, turbocharger or downpipe. We also supply pipe bends and headers for the construction of turbo manifolds. All flanges are cast, water-jet cut or CNC milled in order not to warp during the cutting process. As well as 100% flat and high quality. We select the material thickness from experience in the optimal strength.
Material: 1.451 stainless steel
Overall height: 30 mm
Overall width: 67 mm
Overall length: 93 mm
Flange on turbocharger: V-Band
Flange on turbo manifold: T25
For / Fits:
All turbo manifolds with T25 flange
And all EFR turbochargers exhaust housings with V-band inlet flange on turbine housing, for example:
EFR 6258
EFR 6758
EFR 7163
And many more like:
AGP and TurboZentrum V-Band turbine housings for AirWerks and EFR
- Flange type: V-BandT25 / T28
- Material: Stainless Steel
- Turbocharger: EFR 6258,EFR 6758,EFR7163
- Model: Adapter flange
