Turbo Heat Shield GEN 3 Onyx - Single T25 / T28
The best Turbo heat protection blanket on the market
New Onyx GEN 3 DEI - the strongest, most heat resistant shield available for T25 / T28 turbine housing and similar
DEI raised the bar! The most technologically advanced turbo shield ever!
DEI incorporated all their experience to build the absolute best Onyx turbo shield on the market. By developing advanced textiles and diving deep into what is needed to control turbo heat, DEI developed the GEN-3 Onyx Turbo Shield. A Silicone coated Onyx outer layer with multiple stainless steel and silica inner layers. Without a doubt the strongest, most heat resistant shield available.

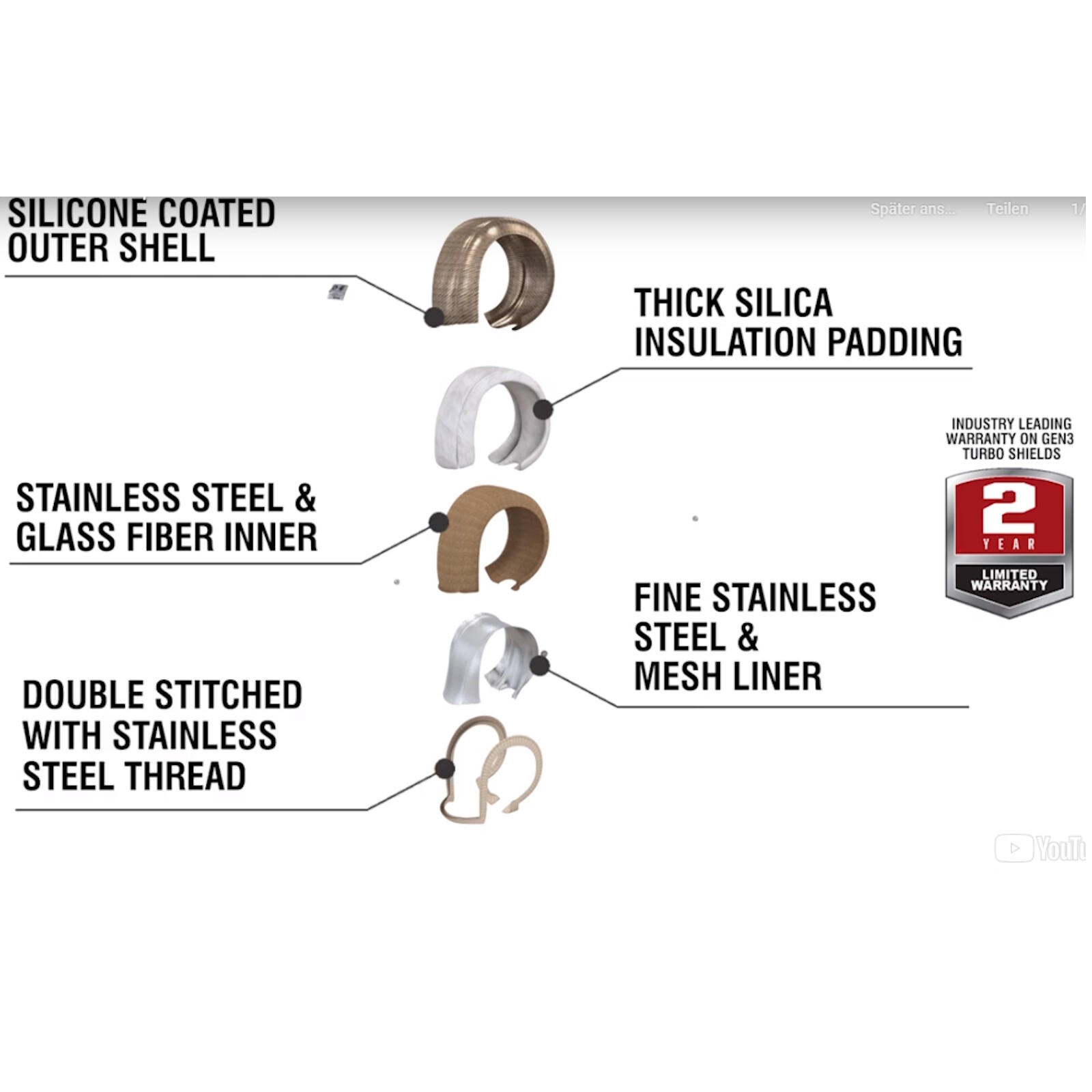

OUTER SHELL
- Coated in silicone to insulate and hold up under extreme conditions Prevents fraying & encases seams to make them over 4 times stronger
- Thick layer of silica insulation keep heat in turbo shield and turbo housing Silica has a low thermal conductivity making one of the best insulators
- Stainless steel, glass fiber & silicone adds to insulating and thermal properties Increases seam strength, durability and insulation value
- Stainless Steel fabric holds up against the highest temps
- Will not break down or become brittle with heat
Radiant Heat Resistance: 1400°C / 2500°F
Size: T25/28
Color: Onyx
Kit: with shield and wire only

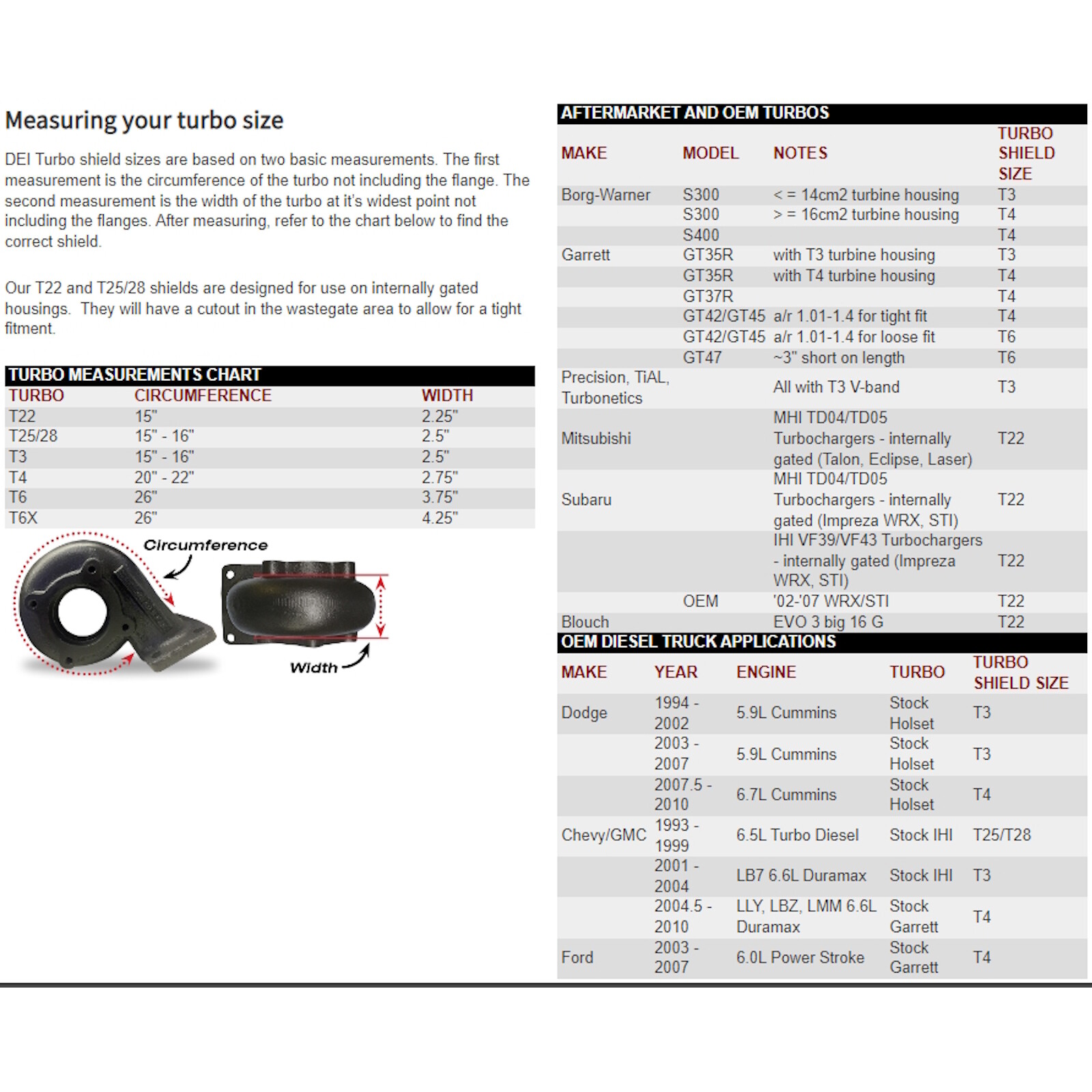

TURBO APPLICATION GUIDEMeasuring your turbo size
- DEI Turbo shield sizes are based on two basic measurements. The first measurement is the circumference of the turbo not including the flange. The second measurement is the width of the turbo at it’s widest point not including the flanges. After measuring, refer to the chart below to find the correct shield.
Price per kit as depicted, without turbine housing.
For instance fits to the following T25 / T28 turbine housings:
- Garrett GT2554R, GT2560R, GT2854R, GT2860R, GT2860RS, GT2871R, GT2876R, GT3071R-WG, GT3076R-WG
- (recommended for turbos w/ internal wastegates)
- Outer circumference: 19”
- Inner width: approximately 2-1/2”
Heat resistant up to 1400° C
Features
- Product Type: Turbo heat shield T25
- Usage: Turbocharger / turbine housing
- Color: black
- Availability: to order
